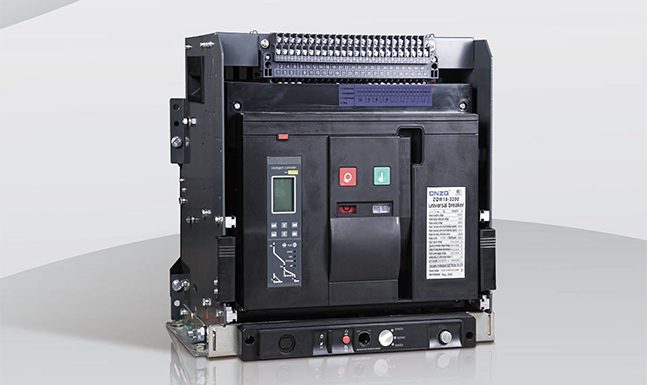

lntelligent universal circuit breaker

1. This product has a maximum current of 7500A.
2. Multifunctional: Fully protect electrical equipment from damage.
3. Energy -saving and efficient: automatically adjust the working status, reduce energy consumption, and improve energy utilization efficiency.
4. Easy installation and maintenance: reasonable design, easy installation, self -diagnostic function quickly solve problems.
5. Wide scope of application: suitable for family, business and industrial fields.

Advantage about CNZQ:
In the 24 years of our company, our company has specially produced low -pressure circuit breakers and has very rich experience.
We have a very mature assembly line and can meet the order needs of most customers.

Get a Quote

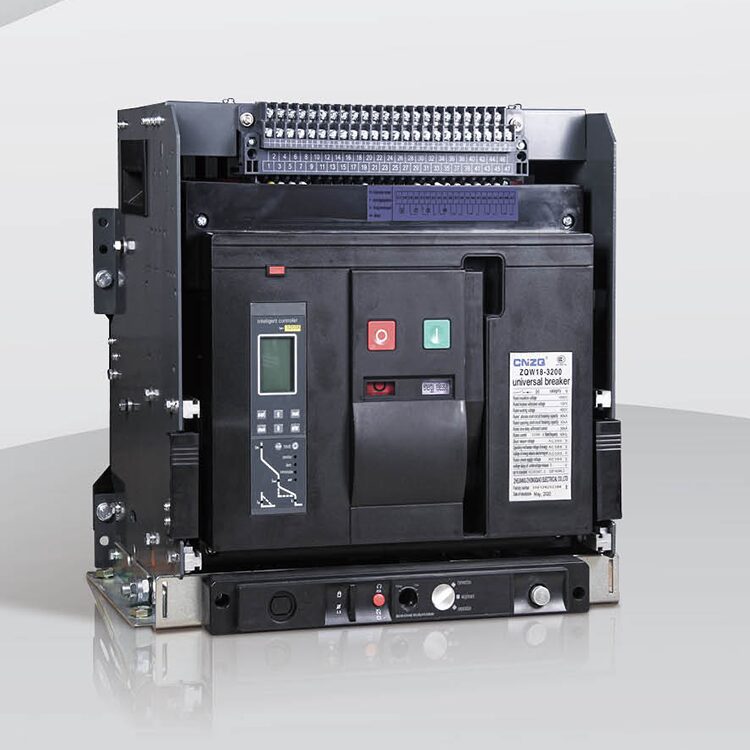

ZQW18 Intelligent universal circuit breaker

• ZQw18 series inteligent universal low-voltage circuit breakers (hereinafter referred to as circuitbreakers) are suitable for distribution network with AC 50Hz,rated voltage up to 660V(690V) and ratedcurrent below 4004~6300A to distribute electric energy and protect lines and power equipment fromoverload, undervoltage, short circuit, single-phase grounding and other faults.

• Circuit breaker has intelligent protection function, selective protection accuracy can improvethe reliability of power supply and avoid unnecessary power failure.At the same time, with an opencommunication interface, four remotes can be carried out to meet the requirements of centralizedcontrol center and automation system.

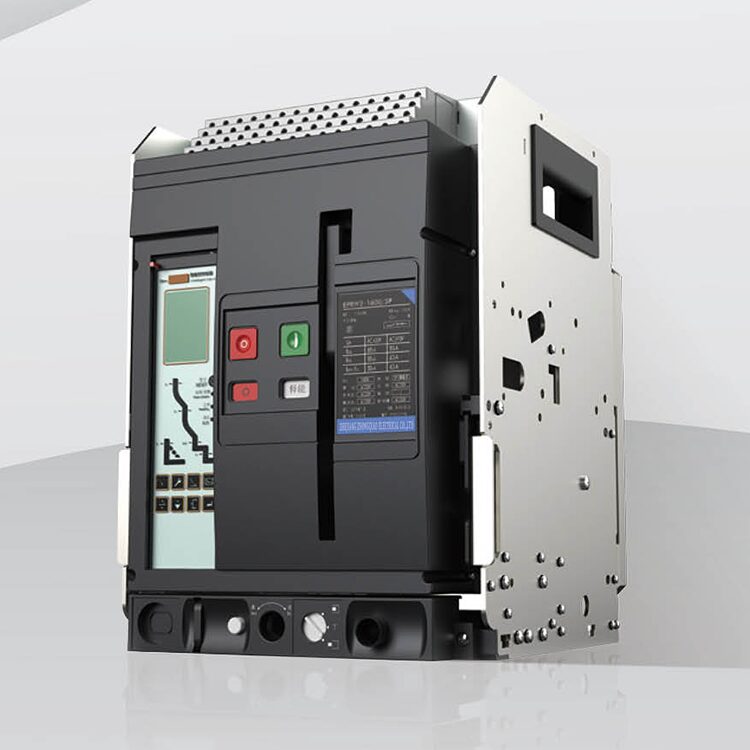

ZQW18-1600 Intelligent universal circuit breaker

• Width pole pitch, easy to connect & install，more safety
• High breaking capacity, zero arcing distance and high safety
• Module construction, flexible application and small size
• Be equipped with three positions lock and unlock device, safety and reliability operation,
• Completing and reliability smart protection function
• Horizontal, vertical and hydrid connection modes
• Upper or bottom connection is acceptable
• lntegrated communication mode is suitable for multiple protocoL

FAQ'S

Which products do our company mainly produce? >

Our company's main products include low-voltage circuit breakers, dual power supplies, isolation switches, busbars, intelligent universal circuit breakers, photovoltaic circuit breakers, DC circuit breakers, etc.
If products have some quality problem, how would you deal with? >

Communicate via video as soon as possible. If the video cannot be processed, the product will be sent out by express delivery immediately. If there is a batch problem, we will send technicians to the site to deal with it as soon as possible.
Where is your factory located and how many employees are there? >

Our factory is located in Liushi Town, the Electrical Capital of China, Our staff team has more than 100 people
Which certificate you have to your equipment? >

3C certificate, CE certificate, ISO9001, ISO14001, ISO45001
What is the delivery time? What are the standards for packaging? >

Completed on time according to customer needs. Packaging according to customer requirements.
Do you accept OEM business, can I get samples from your factory? >

OEM business can be accepted. Samples are available.
