ZQM1E Intelligent Moulded Case Circuit Breaker

Product overview

• ZQM1E series intelligent plastic case circuit breaker is one of the new circuit breakers designed, developed and manufactured by our company with international advanced technology.The rated isolation voltage is 800V,which is suitable for infrequent switching and infrequent starting of motors in circuits with AC 50Hz, rated working voltage of 400V and rated working current of 800A.
• The circuit breaker has the functions of overload long time-delay inverse time, short circuit short time-delay inverse time, short circuit short time-delay definite time, short circuit instantaneousand undervoltage protection, which can protect lines and power equipment from damage.Theproduct has complete accessories.
• Conforming standards: IEC60947-2,GB/T 14048.2.

ZQ M 1 E – 125 M ZA/ 3 300 2 B 100A

ZQ -Name of the company
M -Product model
1 -Design serial number
E -lntelligent code (E: electronic controller)
125 -Shell frame grade(125,250,400,630,800)
M -Breaking capacity(M, H)
ZA -Code of external accessories (P: electric operation,ZAround handle operation, ZF square handle manualoperation)
3 -Optional code of pole number (3,4)
300 -lnternal accessory code of tripping mode
2 -Optional code for different purposes (2, “or no code”)
B -Optional code of quadrupole product(A, B,C,D)
100A -Operating current (optional)

Note

• According to the shell frame grade current: Inm=l25, Inm=250,Inm=400,Inm=630, Inm=800;
• According to the rated breaking capacity: C.basic type (25kA),L standard type (35kA),M high breaking type(65kA) and H high breaking type (100kA);
• According to the operation mode: there is no code for direct operation of the handle; Pmeans electric operation; Z means rotary handle operation;
• Rated current optional:
ZQM1E-125 is 16、20、25、32、40、50、63、80、100、125;
ZQM1E-250 is 100、125、140、160、180、200、225、250 ;
ZQM1E-400 is 200、225、250、315、350、400;
ZQMIE-630 is 250、315、350、400、500、630;
ZQM1E-800 is 500、630、700、800;
• Optional codes according to the numberof poles: 2 represents two poles, 3 represents three poles and 4 represents four poles.
• Optional codes for tripping mode and internal accessories: the first digit represents the tripping mode, the last two digits represent the internal accessories code, 2 represents electromagnetic tripping (instantaneous), and 3 represents multiple tripping (thermal + electromagnetic);
• Optional codes for different purposes: no code for power distribution, 2 for motor protection;
• Optional code of quadrupole products:
Type A: the N-pole is not equipped with overcurrent tripping element, and the N-pole is always connected, and it is not closed or opened with other three poles;
Type B: the N-pole is not equipped with overcurrent tripping element, and the N- pole is opened and closed with other three poles;
Type C: the N- pole is equipped with overcurrent tripping element, and the N-pole is opened and closed with other three poles;
Type D: the N-pole is equipped with overcurrent tripping element, and the N-pole is always connected , and it is not opened or closed with other three poles.
• According to the wiring mode, it can be divided into front panel wiring, rear panel wiring, plug-in rear panel wiring and plug-in front panel wiring.
• Other accessories are mechanical interlocking (mechanical interlocking between two circuit breakers).

Main performance characteristics

• ZQM1E series intelligent plastic case circuit breakers have three-section protection functions and the circuit breaker with category B is fully selectively with other circuit breakers protection devices connected in the same circuit under short circuit conditions;
• There are five tripping characteristics : users can set and adjust the release according to the load current requirements;
• The electronic release is powered by the circuit breakeritself, and the current signal and control power are from the ring current transformer installed in the circuit breaker;
With early warning indication: when the load current exceeds the preset current, the LED on the breaker cover indicates yllow;
• Overload indication:When the load current exceeds the setting current, the LED on the breaker cover indicates red;
lt has the function of overload non tripping only alarm for fire protection.When the load current is overloaded, the circuit breaker will not trip, and a passive contact signal will be output to drive the corresponding alarm device;
• Meet the electromagnetic compatibility requirements of IEC60947 Appendix F;
• The overall dimensions are the same as those of ZQM1 series molded case circuit breakers, and the installation is interchangeable.

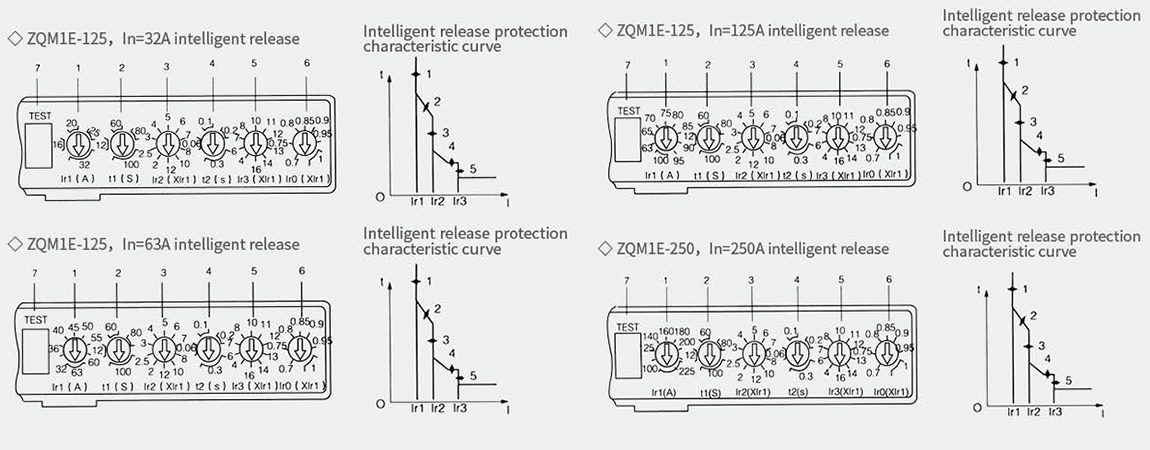

Introduction to structure identification:

Protection:

1、The overload long delay action currentIrl can be adjusted from 4 points to 10points according to different rated currentof the circuit breaker;
2、The long delay action time tl can beadjusted at 4 points;
3、 The short-circuit short-delay actioncurrent lr2 can be adjusted at 10 points;
4、The short delay action time t2 can beadjusted at 4 points;
5、 The short-circuit instantaneous actioncurrent Ir3 can be adjusted at 9 or 10points.
6、The IrO adjustment of the prealarmaction current can be adjusted at 7 points;
7、The test terminal is used to detect thecurrent setting value of the electronicrelease;
8、Working indication of electronicrelease;
9、Pre-alarm indication;
10、Overload indication;
11、Trip button.
