Contactor thermal relay

Contact parameters: Heating current Ith=10A,INO+INC

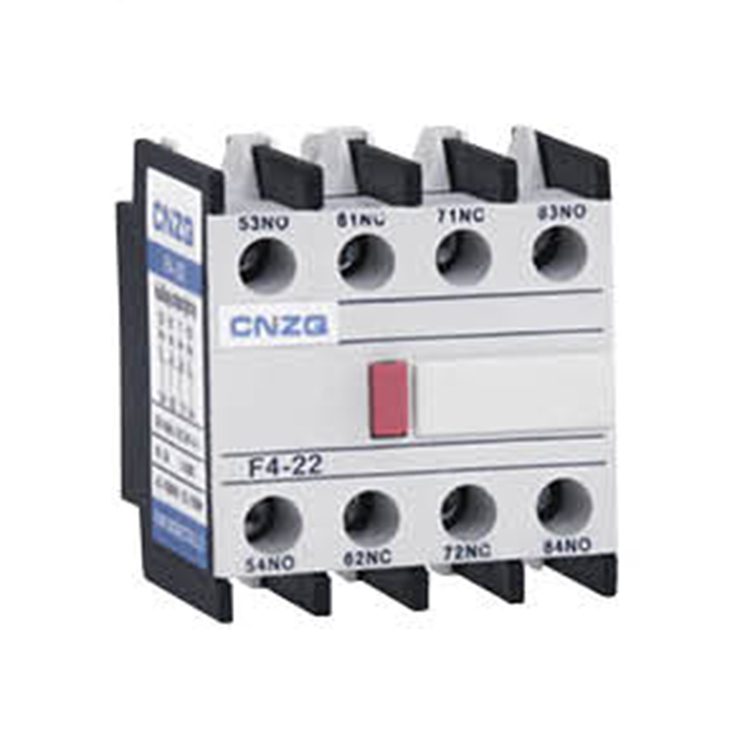

The F4 series auxiliary contact can be installed on the top of the CA2 series contact relay to expand the contact pairs.The auxiliary contact group uses the sliding friction contact function to ensure the reliable connection of the circuit.The F4 series auxiliary contact group consists of 8 full specifications,ZF4-11,20,13,31,22,etc.

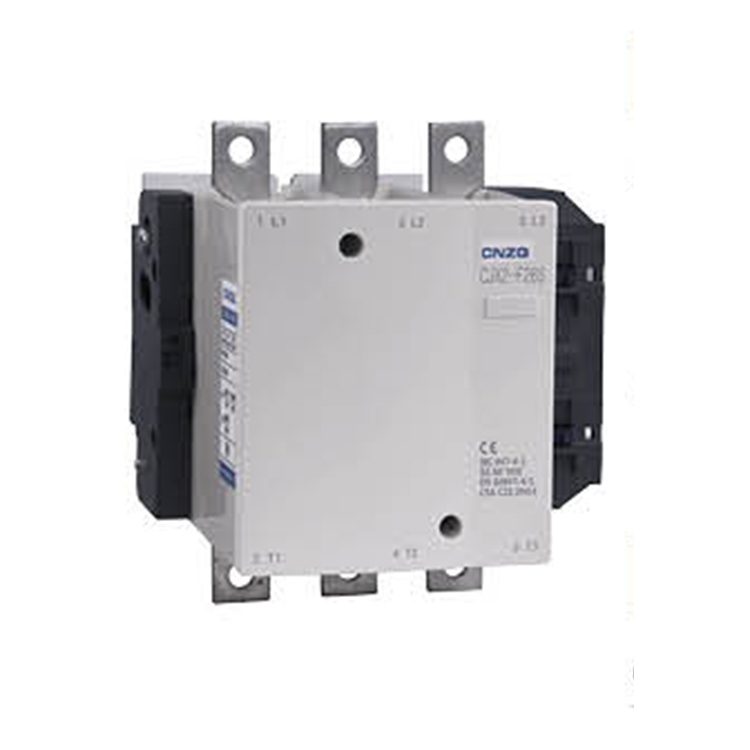

• CJX2-F series AC contactor (hereinafter referred to as contactor) is applicable to 50Hz or 60HZ, equipped with special coil, can be used in circuits with 40~400AC, working voltage up to 660V, and working current up to 630A, for connection and disconnection of main circuit, and for frequent starting and control of motor; It can be used together with various relays and other general electrical equipment for various electrical equipment, motors and circuit control.

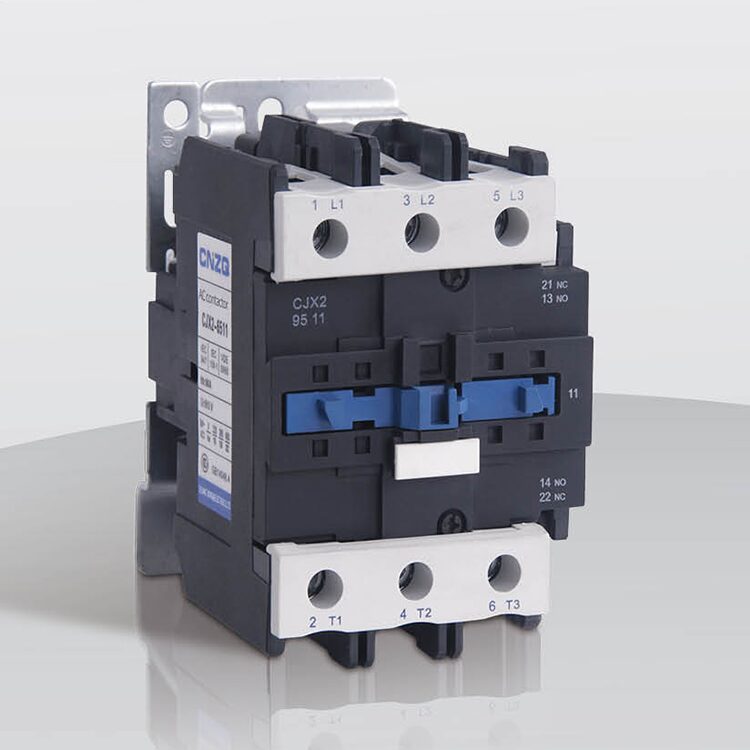

• CJX2 series AC contactors (hereinafter referred to as contactors) are applicable to circuits with AC50Hz or 60Hz, working voltage up to 660V, rated working voltage up to 380V and working current up to 95A under AC-3 use category, for remote connection and disconnection of circuits and frequent starting and control of AC motors. Contactors can also be assembled into building block auxiliary contact group, air delay head, mechanical interlocking mechanism and other components to form delay contactors Reversible contactor and star-delta starter can be directly inserted and installed with thermal relay to form electromagnetic starter.
